Forget Turntables, go back to DJing with cassettes

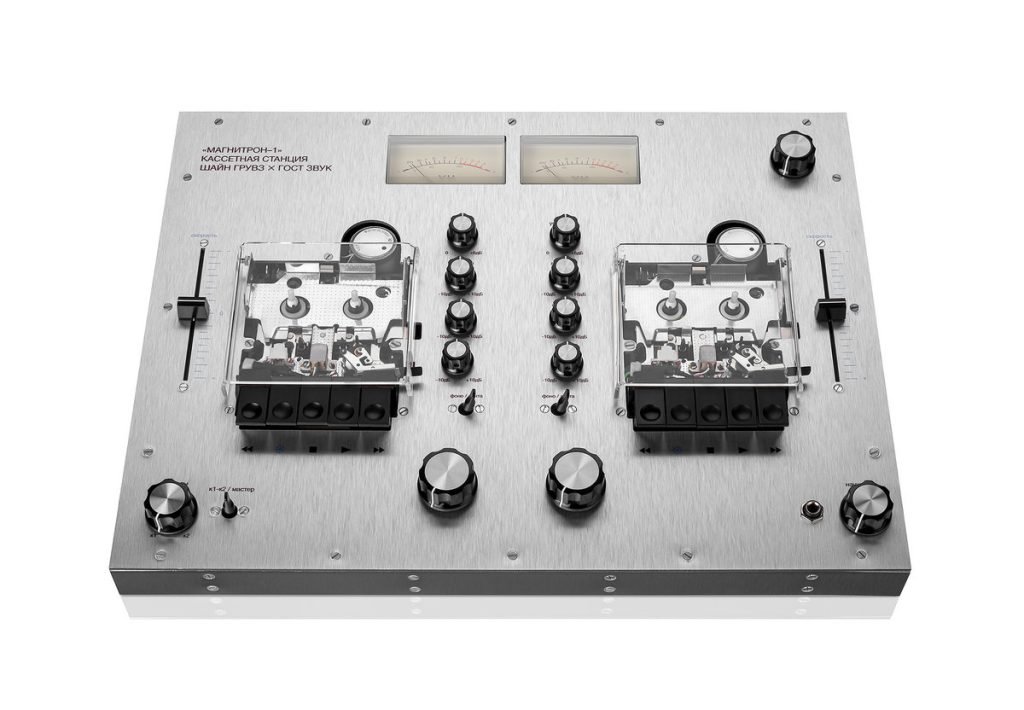

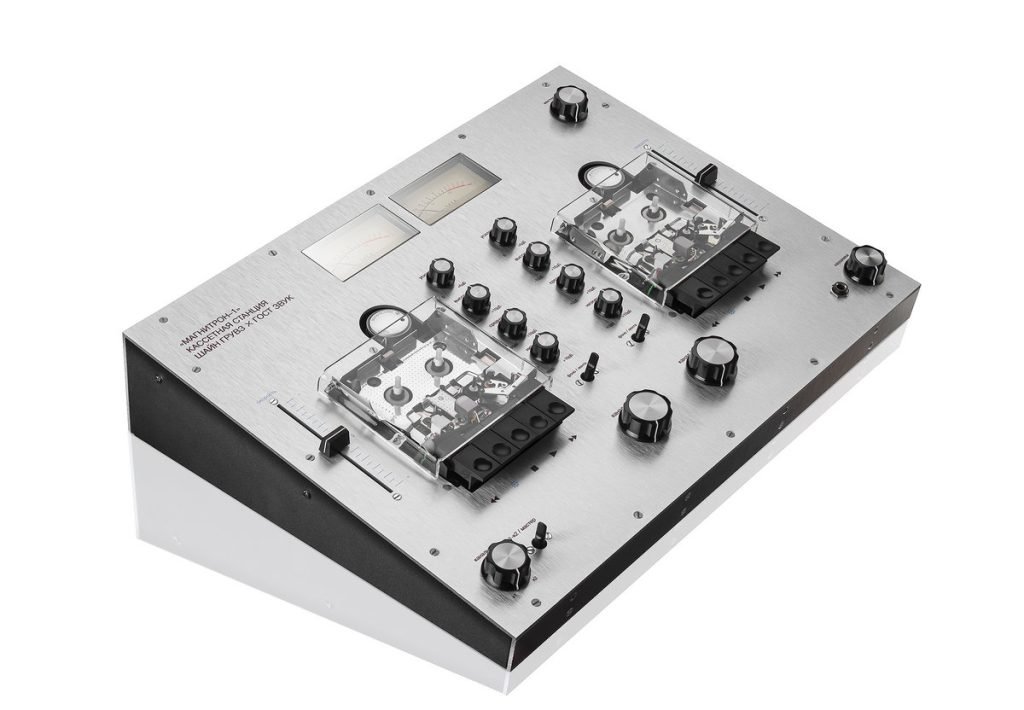

Introducing the Cassette Mixer Magnitron-1, developed by Andrey Kurokhtin, also known as Shine Grooves. The Magnitron-1 is a one-of-a-kind device that allows you to play and mix two cassette decks, each with independent control over pitch, volume, and a three-band equalizer. Magnitron-1 is not just a mixer; it’s a complete musical instrument, opening up new creative possibilities for working with cassette tapes.

Andrey handcrafts each unit in Yekaterinburg as part of a limited series. Pre-orders are open until the end of the year with a price of 1400 euros + shipping (50% prepayment required).

Specs

Tape Mechanism:
Speed: Nominal 4.76 cm/s (adjustable ±50%)
Wow and Flutter: 0.7 – 1%
Frequency Response:
Type I (Normal): 40 Hz – 14,000 Hz
Type II (High): 40 Hz – 17,000 Hz
Type IV (Metal): 30 Hz – 21,000 Hz
Stereo Tracks: 2 (Stereo)

Mixer Panel:
Channels: 2, with independent pitch control for each deck
Equalizer: 3-band EQ per channel (Bass, Mid, Treble with boost/cut)
Pre-listening: Available in headphones with smooth switching between channels and preview/master modes
Master Volume Control: Rotary knob

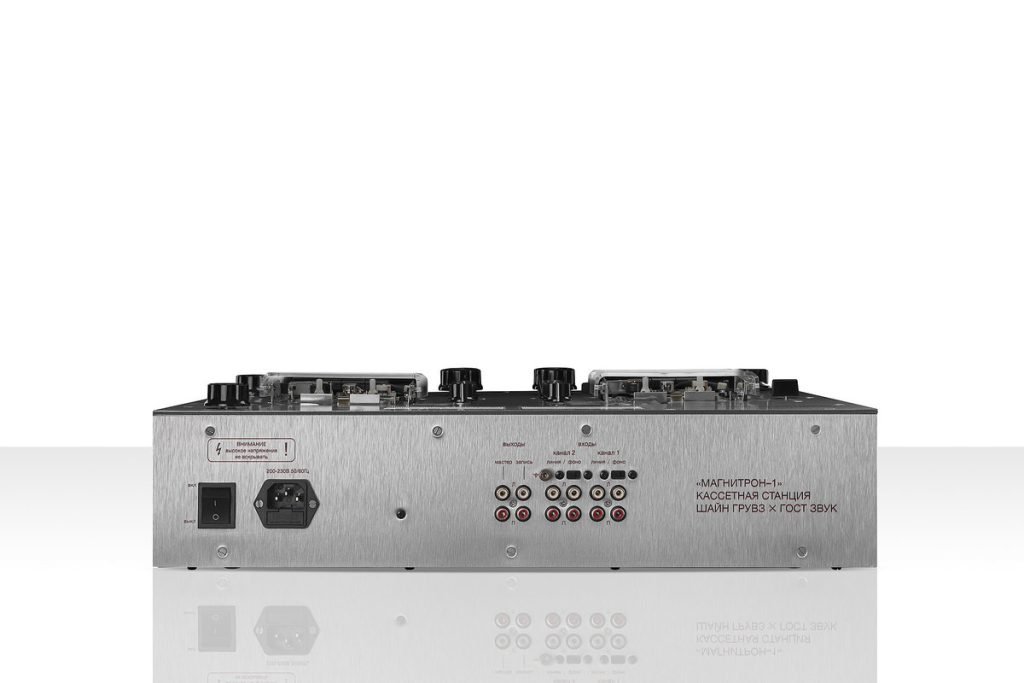

Inputs and Outputs:
Inputs:
2 Line Inputs (Stereo RCA)
2 Phono Inputs (Stereo RCA)
Outputs:
1 Master Output (Stereo RCA)
1 Recording Output (Stereo RCA)
1 Headphone Output (6.3 mm Jack)

Indicators:
Type: Stereo VU meters with calibration capability
Function: Displays summed stereo signal (Deck 1 + Deck 2)
Note: Master volume control does not affect indicator levels or recording output

Power and Dimensions:
Power Supply: 200-230V AC, 50/60 Hz
Dimensions: 492 mm x 386 mm x 123 mm
Weight: 6 kg

Operating Environment:
Temperature Range: -5°C to +45°C
Humidity: Up to 80%
